RabbitMq
headers类型交换机
是通过 muliple attributes 代替 routing key.
x-match [all/any]
all: 所有地方header头信息必须匹配
any:只要有一个匹配就ok了
说白了就是||和&&的关系
代码】】
any的写法:
if(name=="jack" || age==20)
{
queue1.add(msg);
}
all的写法:
if(name=="jack" && age==20)
{
queue2.add(msg);
}
消费端:
//创建一个连接工厂
ConnectionFactory factory = new ConnectionFactory()
{
HostName = "192.168.1.63",
UserName = "hbadmin",
Password = "hbadmin"
};
//创建一个连接
using (var conntion = factory.CreateConnection())
{
//创建channe
using (var channe = conntion.CreateModel())
{
//创建交换机(直接形交换机) (已有)
channe.ExchangeDeclare("myheadersexchange", ExchangeType.Headers, true, false
//创建队列
//姓名,是否持久化，是否是专有的，是否自动删除，
//当有很多个队列同时在获取数据时
channe.QueueDeclare("myheadersqueue1", true, false, false, null);
var dic = new Dictionary<string, object>();
dic.Add("x-match", "any");
//dic.Add("x-match", "all");
dic.Add("username", "jack");
dic.Add("password", "12345");
//交换机绑定队列

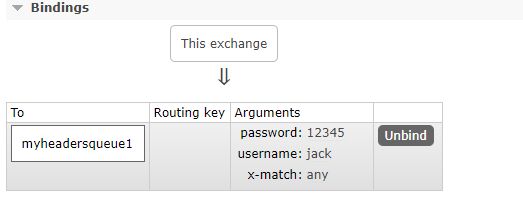

channe.QueueBind("myheadersqueue1", "myheadersexchange", string.Empty, dic);
//应当用到事件
{
var consumer = new EventingBasicConsumer(channe);
consumer.Received += (sender, e) =>
{
string msg = Encoding.UTF8.GetString(e.Body);
Console.WriteLine(msg);
};
//执行加载的事件
channe.BasicConsume("myheadersqueue1", true, consumer);

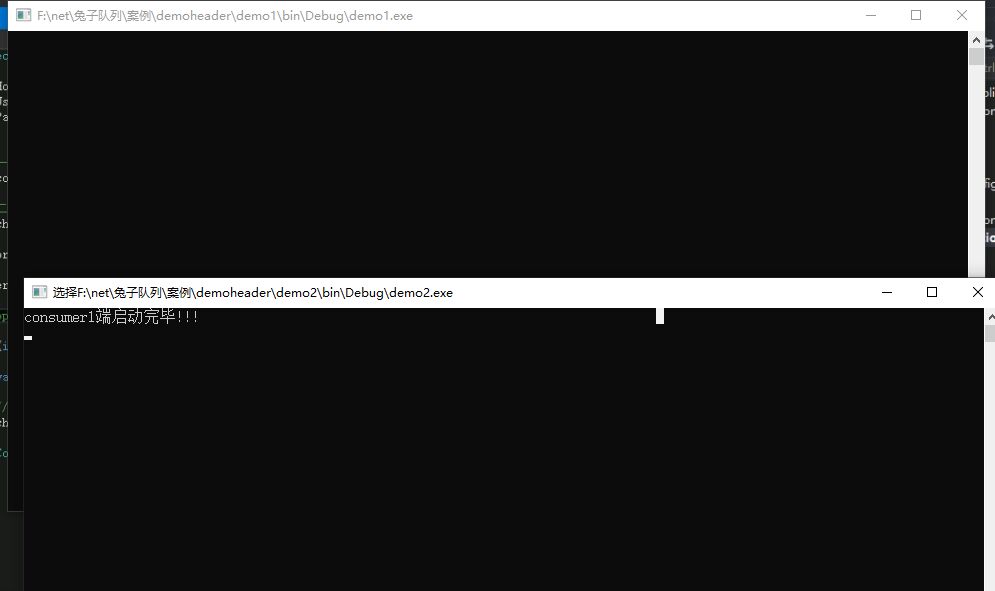

Console.WriteLine("consumerl端启动完毕!!!");
}
Console.Read();
}
}数据服务端：
ConnectionFactory factory = new ConnectionFactory()
{
HostName = "192.168.1.63",
UserName = "hbadmin",
Password = "hbadmin"
};
//创建一个连接
using (var conntion = factory.CreateConnection())
{
//创建channe
using (var channe = conntion.CreateModel())
{
var properties = channe.CreateBasicProperties();
properties.Headers = new Dictionary<string,object>();
properties.Headers.Add("username", "jack");
properties.Headers.Add("password", "123");
for (int i = 0; i < 100; i++)
{
var qmsg = $"{i}:你好";
//消息
var msg = Encoding.UTF8.GetBytes(qmsg);
//发布消息
channe.BasicPublish("myheadersexchange", routingKey: string.Empty, basicProperties: properties, body: msg);
}
Console.Read();
}

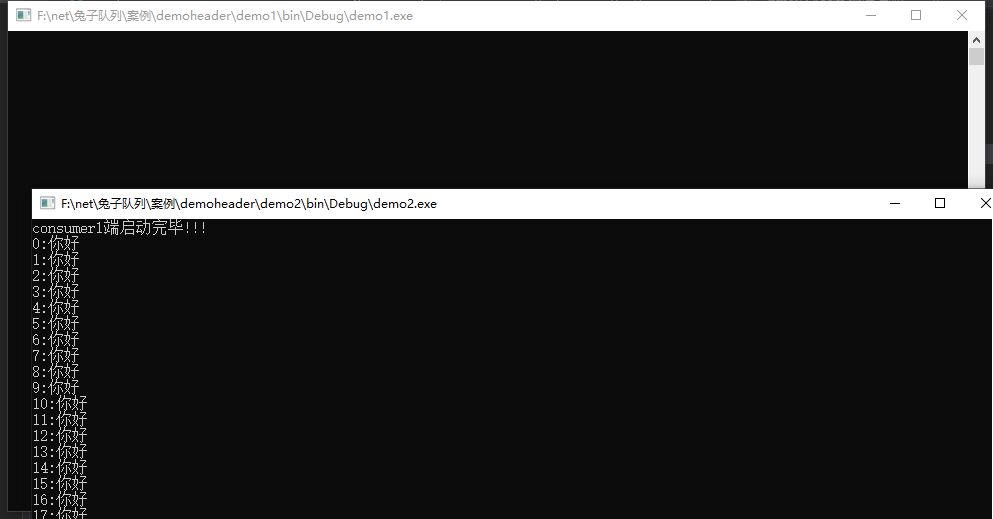

}当把消费端改为any时：
当把消费端改为all时：
