Harbor介绍与离线安装
Harbor介绍与离线安装
Harbor介绍
Harbor离线安装
预备准备环境应用
下载Harbor包
安装Harbor
Helm 安装

Harbor介绍

Harbor是一个开源的可信云本地注册项目，用于存储、签名和扫描内容。Harbor通过添加用户通常需要的功能（如安全性、身份和管理）扩展了开源Docker发行版。使注册表更接近构建和运行环境可以提高图像传输效率。Harbor支持在注册中心之间复制映像，还提供高级安全功能，如用户管理、访问控制和活动审核。

Harbor离线安装

预备准备环境应用

请确保在本地安装了 Docker 与 docker-compose 应用

下载Harbor包

查看Harbor版本地址： https://github.com/goharbor/harbor/releases

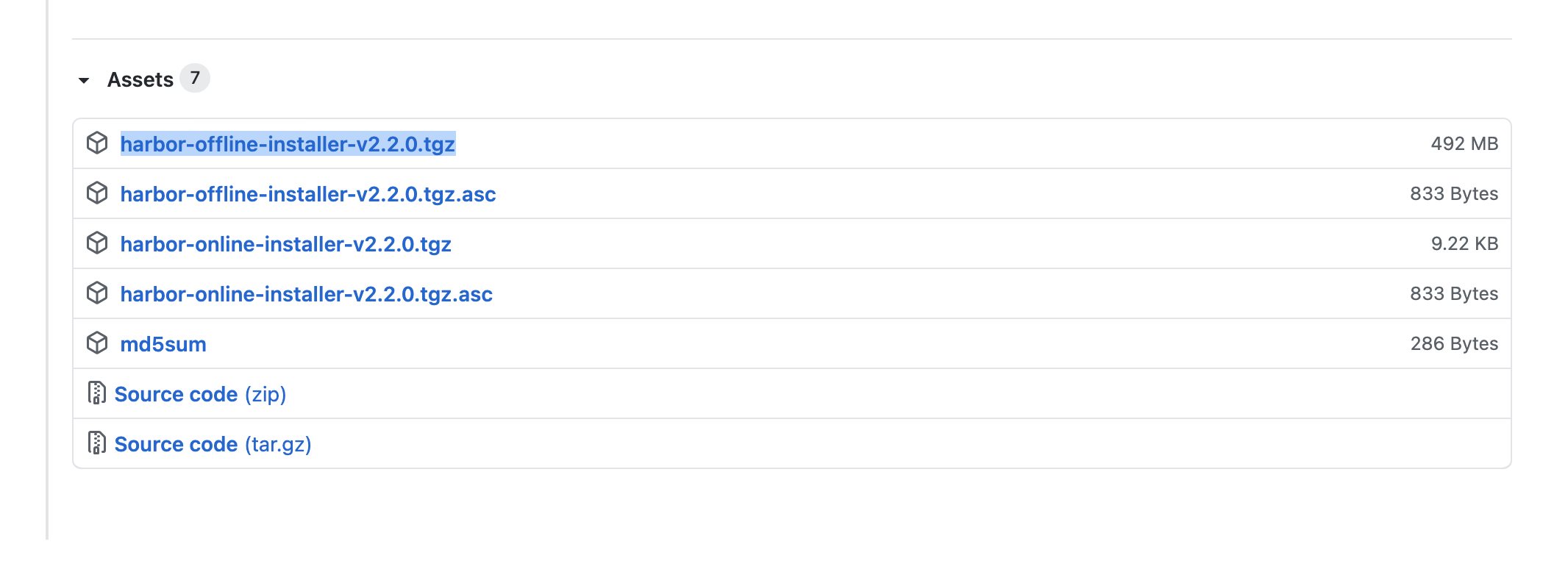

当前这里最新的版本是2.2，然后我们点击进去，复制下图的第一个链接执行相关命令进行下载

wget https://github.com/goharbor/harbor/releases/download/v2.2.0/harbor-offline-installer-v2.2.0.tgz
# 解压包
tar zvxf harbor-offline-installer-v2.2.0.tgz
# 到harbor包根目录下
cd harbor

我们可以看到harbor文件夹下面有如下文件。

LICENSE —— 许可文件
common.sh —— 安装脚本的工具脚本
harbor.v2.0.0.tar.gz —— 各个功能组件的镜像文件压缩包
harbor.yml.tmpl —— 配置文件的模版，在配置好后我们需要将tmpl去掉或者生成新的harbor.yml
install.sh —— 安装脚本。
prepare —— 准备脚本，将harbor.yml配置文件的内容注入各主见的配置文件中。

安装Harbor

我们先执行cp harbor.yml.tmpl harbor.yml,然后我们将配置harbor，注意如果没有一些指定的证书文件请把https给去掉，更多关于如何配置请参考： https://goharbor.io/docs/2.2.0/install-config/configure-yml-file/

最后我们将启动我们的组件并进行安装。安装时组件参数如下也可以执行./install.sh -h进行查看。

参数	描述
`--with-notary`	选择安装镜像的签名组件Notary，其中包括 Notary Server 和 Notary Signer 如果指定安装 Notary，则必须配置 Harbor 的网络协议为 HTTPS
`--with-trivy`	选择安装镜像扫描组件Trivy。
`--with-chartmuseum`	选择安装Chart文件管理组件ChartMuseum

最后执行安装命令

./install.sh

Helm 安装

下面的values.yaml文件。

expose:
  type: nodePort
  tls:
    enabled: true
    certSource: auto
    auto:
      commonName: "10.9.2.98:30003"
    secret:
      secretName: ""
      notarySecretName: ""
  ingress:
    hosts:
      core: "core.harbor.domain"
    annotations:
      ingress.kubernetes.io/ssl-redirect: "true"
      nginx.ingress.kubernetes.io/ssl-redirect: "true"
      ingress.kubernetes.io/proxy-body-size: "0"
      nginx.ingress.kubernetes.io/proxy-body-size: "0"
  nodePort:
    # The name of NodePort service
    name: harbor
    ports:
      http:
        # The service port Harbor listens on when serving HTTP
        port: 80
        # The node port Harbor listens on when serving HTTP
        nodePort: 30002
      https:
        # The service port Harbor listens on when serving HTTPS
        port: 443
        # The node port Harbor listens on when serving HTTPS
        nodePort: 30003
      # Only needed when notary.enabled is set to true
      notary:
        # The service port Notary listens on
        port: 4443
        # The node port Notary listens on
        nodePort: 30004
# 注意这里如果你是nodeport模式请设置某个节点的端口
externalURL: https://10.9.2.98:30003
internalTLS:
  enabled: false
  # There are three ways to provide tls
  # 1) "auto" will generate cert automatically
  # 2) "manual" need provide cert file manually in following value
  # 3) "secret" internal certificates from secret
  certSource: "auto"
  # The content of trust ca, only available when `certSource` is "manual"
  trustCa: ""
  # core related cert configuration
  core:
    # secret name for core's tls certs
    secretName: ""
    # Content of core's TLS cert file, only available when `certSource` is "manual"
    crt: ""
    # Content of core's TLS key file, only available when `certSource` is "manual"
    key: ""
  # jobservice related cert configuration
  jobservice:
    # secret name for jobservice's tls certs
    secretName: ""
    # Content of jobservice's TLS key file, only available when `certSource` is "manual"
    crt: ""
    # Content of jobservice's TLS key file, only available when `certSource` is "manual"
    key: ""
  # registry related cert configuration
  registry:
    # secret name for registry's tls certs
    secretName: ""
    # Content of registry's TLS key file, only available when `certSource` is "manual"
    crt: ""
    # Content of registry's TLS key file, only available when `certSource` is "manual"
    key: ""
  # portal related cert configuration
  portal:
    # secret name for portal's tls certs
    secretName: ""
    # Content of portal's TLS key file, only available when `certSource` is "manual"
    crt: ""
    # Content of portal's TLS key file, only available when `certSource` is "manual"
    key: ""
  # chartmuseum related cert configuration
  chartmuseum:
    # secret name for chartmuseum's tls certs
    secretName: ""
    # Content of chartmuseum's TLS key file, only available when `certSource` is "manual"
    crt: ""
    # Content of chartmuseum's TLS key file, only available when `certSource` is "manual"
    key: ""
  # trivy related cert configuration
  trivy:
    # secret name for trivy's tls certs
    secretName: ""
    # Content of trivy's TLS key file, only available when `certSource` is "manual"
    crt: ""
    # Content of trivy's TLS key file, only available when `certSource` is "manual"
    key: ""
ipFamily:
  # ipv6Enabled set to true if ipv6 is enabled in cluster, currently it affected the nginx related component
  ipv6:
    enabled: false
  # ipv4Enabled set to true if ipv4 is enabled in cluster, currently it affected the nginx related component
  ipv4:
    enabled: true
# The persistence is enabled by default and a default StorageClass
# is needed in the k8s cluster to provision volumes dynamically.
# Specify another StorageClass in the "storageClass" or set "existingClaim"
# if you already have existing persistent volumes to use
#
# For storing images and charts, you can also use "azure", "gcs", "s3",
# "swift" or "oss". Set it in the "imageChartStorage" section
persistence:
  enabled: true
  # Setting it to "keep" to avoid removing PVCs during a helm delete
  # operation. Leaving it empty will delete PVCs after the chart deleted
  # (this does not apply for PVCs that are created for internal database
  # and redis components, i.e. they are never deleted automatically)
  resourcePolicy: "keep"
  persistentVolumeClaim:
    registry:
      # Use the existing PVC which must be created manually before bound,
      # and specify the "subPath" if the PVC is shared with other components
      existingClaim: ""
      # Specify the "storageClass" used to provision the volume. Or the default
      # StorageClass will be used (the default).
      # Set it to "-" to disable dynamic provisioning
      storageClass: "nfs-client"
      subPath: ""
      accessMode: ReadWriteOnce
      size: 5Gi
      annotations: {}
    chartmuseum:
      existingClaim: ""
      storageClass: "nfs-client"
      subPath: ""
      accessMode: ReadWriteOnce
      size: 5Gi
      annotations: {}
    jobservice:
      existingClaim: ""
      storageClass: "nfs-client"
      subPath: ""
      accessMode: ReadWriteOnce
      size: 1Gi
      annotations: {}
    # If external database is used, the following settings for database will
    # be ignored
    database:
      existingClaim: ""
      storageClass: "nfs-client"
      subPath: ""
      accessMode: ReadWriteOnce
      size: 1Gi
      annotations: {}
    # If external Redis is used, the following settings for Redis will
    # be ignored
    redis:
      existingClaim: ""
      storageClass: "nfs-client"
      subPath: ""
      accessMode: ReadWriteOnce
      size: 1Gi
      annotations: {}
    trivy:
      existingClaim: ""
      storageClass: "nfs-client"
      subPath: ""
      accessMode: ReadWriteOnce
      size: 5Gi
      annotations: {}
  # Define which storage backend is used for registry and chartmuseum to store
  # images and charts. Refer to
  # https://github.com/docker/distribution/blob/master/docs/configuration.md#storage
  # for the detail.
  imageChartStorage:
    # Specify whether to disable `redirect` for images and chart storage, for
    # backends which not supported it (such as using minio for `s3` storage type), please disable
    # it. To disable redirects, simply set `disableredirect` to `true` instead.
    # Refer to
    # https://github.com/docker/distribution/blob/master/docs/configuration.md#redirect
    # for the detail.
    disableredirect: false
    # Specify the "caBundleSecretName" if the storage service uses a self-signed certificate.
    # The secret must contain keys named "ca.crt" which will be injected into the trust store
    # of registry's and chartmuseum's containers.
    # caBundleSecretName:
    # Specify the type of storage: "filesystem", "azure", "gcs", "s3", "swift",
    # "oss" and fill the information needed in the corresponding section. The type
    # must be "filesystem" if you want to use persistent volumes for registry
    # and chartmuseum
    type: filesystem
    filesystem:
      rootdirectory: /storage
      #maxthreads: 100
    azure:
      accountname: accountname
      accountkey: base64encodedaccountkey
      container: containername
      #realm: core.windows.net
    gcs:
      bucket: bucketname
      # The base64 encoded json file which contains the key
      encodedkey: base64-encoded-json-key-file
      #rootdirectory: /gcs/object/name/prefix
      #chunksize: "5242880"
    s3:
      # Set an existing secret for S3 accesskey and secretkey
      # keys in the secret should be AWS_ACCESS_KEY_ID and AWS_SECRET_ACCESS_KEY for chartmuseum
      # keys in the secret should be REGISTRY_STORAGE_S3_ACCESSKEY and REGISTRY_STORAGE_S3_SECRETKEY for registry
      #existingSecret: ""
      region: us-west-1
      bucket: bucketname
      #accesskey: awsaccesskey
      #secretkey: awssecretkey
      #regionendpoint: http://myobjects.local
      #encrypt: false
      #keyid: mykeyid
      #secure: true
      #skipverify: false
      #v4auth: true
      #chunksize: "5242880"
      #rootdirectory: /s3/object/name/prefix
      #storageclass: STANDARD
      #multipartcopychunksize: "33554432"
      #multipartcopymaxconcurrency: 100
      #multipartcopythresholdsize: "33554432"
    swift:
      authurl: https://storage.myprovider.com/v3/auth
      username: username
      password: password
      container: containername
      #region: fr
      #tenant: tenantname
      #tenantid: tenantid
      #domain: domainname
      #domainid: domainid
      #trustid: trustid
      #insecureskipverify: false
      #chunksize: 5M
      #prefix:
      #secretkey: secretkey
      #accesskey: accesskey
      #authversion: 3
      #endpointtype: public
      #tempurlcontainerkey: false
      #tempurlmethods:
    oss:
      accesskeyid: accesskeyid
      accesskeysecret: accesskeysecret
      region: regionname
      bucket: bucketname
      #endpoint: endpoint
      #internal: false
      #encrypt: false
      #secure: true
      #chunksize: 10M
      #rootdirectory: rootdirectory
imagePullPolicy: IfNotPresent
# Use this set to assign a list of default pullSecrets
imagePullSecrets:
#  - name: docker-registry-secret
#  - name: internal-registry-secret
# The update strategy for deployments with persistent volumes(jobservice, registry
# and chartmuseum): "RollingUpdate" or "Recreate"
# Set it as "Recreate" when "RWM" for volumes isn't supported
updateStrategy:
  type: RollingUpdate
# debug, info, warning, error or fatal
logLevel: info
# The initial password of Harbor admin. Change it from portal after launching Harbor
harborAdminPassword: "Harbor12345"
# The name of the secret which contains key named "ca.crt". Setting this enables the
# download link on portal to download the CA certificate when the certificate isn't
# generated automatically
caSecretName: ""
# The secret key used for encryption. Must be a string of 16 chars.
secretKey: "not-a-secure-key"
# The proxy settings for updating trivy vulnerabilities from the Internet and replicating
# artifacts from/to the registries that cannot be reached directly
proxy:
  httpProxy:
  httpsProxy:
  noProxy: 127.0.0.1,localhost,.local,.internal
  components:
    - core
    - jobservice
    - trivy
# Run the migration job via helm hook
enableMigrateHelmHook: false
# The custom ca bundle secret, the secret must contain key named "ca.crt"
# which will be injected into the trust store for chartmuseum, core, jobservice, registry, trivy components
# caBundleSecretName: ""
## UAA Authentication Options
# If you're using UAA for authentication behind a self-signed
# certificate you will need to provide the CA Cert.
# Set uaaSecretName below to provide a pre-created secret that
# contains a base64 encoded CA Certificate named `ca.crt`.
# uaaSecretName:
# If service exposed via "ingress", the Nginx will not be used
nginx:
  image:
    repository: goharbor/nginx-photon
    tag: dev
  # set the service account to be used, default if left empty
  serviceAccountName: ""
  # mount the service account token
  automountServiceAccountToken: false
  replicas: 1
  revisionHistoryLimit: 10
  # resources:
  #  requests:
  #    memory: 256Mi
  #    cpu: 100m
  nodeSelector: {}
  tolerations: []
  affinity: {}
  ## Additional deployment annotations
  podAnnotations: {}
  ## The priority class to run the pod as
  priorityClassName:
portal:
  image:
    repository: goharbor/harbor-portal
    tag: dev
  # set the service account to be used, default if left empty
  serviceAccountName: ""
  # mount the service account token
  automountServiceAccountToken: false
  replicas: 1
  revisionHistoryLimit: 10
  # resources:
  #  requests:
  #    memory: 256Mi
  #    cpu: 100m
  nodeSelector: {}
  tolerations: []
  affinity: {}
  ## Additional deployment annotations
  podAnnotations: {}
  ## The priority class to run the pod as
  priorityClassName:
core:
  image:
    repository: goharbor/harbor-core
    tag: dev
  # set the service account to be used, default if left empty
  serviceAccountName: ""
  # mount the service account token
  automountServiceAccountToken: false
  replicas: 1
  revisionHistoryLimit: 10
  ## Startup probe values
  startupProbe:
    enabled: true
    initialDelaySeconds: 10
  # resources:
  #  requests:
  #    memory: 256Mi
  #    cpu: 100m
  nodeSelector: {}
  tolerations: []
  affinity: {}
  ## Additional deployment annotations
  podAnnotations: {}
  # Secret is used when core server communicates with other components.
  # If a secret key is not specified, Helm will generate one.
  # Must be a string of 16 chars.
  secret: ""
  # Fill the name of a kubernetes secret if you want to use your own
  # TLS certificate and private key for token encryption/decryption.
  # The secret must contain keys named:
  # "tls.crt" - the certificate
  # "tls.key" - the private key
  # The default key pair will be used if it isn't set
  secretName: ""
  # The XSRF key. Will be generated automatically if it isn't specified
  xsrfKey: ""
  ## The priority class to run the pod as
  priorityClassName:
  # The time duration for async update artifact pull_time and repository
  # pull_count, the unit is second. Will be 10 seconds if it isn't set.
  # eg. artifactPullAsyncFlushDuration: 10
  artifactPullAsyncFlushDuration:
jobservice:
  image:
    repository: goharbor/harbor-jobservice
    tag: dev
  replicas: 1
  revisionHistoryLimit: 10
  # set the service account to be used, default if left empty
  serviceAccountName: ""
  # mount the service account token
  automountServiceAccountToken: false
  maxJobWorkers: 10
  # The logger for jobs: "file", "database" or "stdout"
  jobLoggers:
    - file
    # - database
    # - stdout
  # The jobLogger sweeper duration (ignored if `jobLogger` is `stdout`)
  loggerSweeperDuration: 14 #days
  # resources:
  #   requests:
  #     memory: 256Mi
  #     cpu: 100m
  nodeSelector: {}
  tolerations: []
  affinity: {}
  ## Additional deployment annotations
  podAnnotations: {}
  # Secret is used when job service communicates with other components.
  # If a secret key is not specified, Helm will generate one.
  # Must be a string of 16 chars.
  secret: ""
  ## The priority class to run the pod as
  priorityClassName:
registry:
  # set the service account to be used, default if left empty
  serviceAccountName: ""
  # mount the service account token
  automountServiceAccountToken: false
  registry:
    image:
      repository: goharbor/registry-photon
      tag: dev
    # resources:
    #  requests:
    #    memory: 256Mi
    #    cpu: 100m
  controller:
    image:
      repository: goharbor/harbor-registryctl
      tag: dev
    # resources:
    #  requests:
    #    memory: 256Mi
    #    cpu: 100m
  replicas: 1
  revisionHistoryLimit: 10
  nodeSelector: {}
  tolerations: []
  affinity: {}
  ## Additional deployment annotations
  podAnnotations: {}
  ## The priority class to run the pod as
  priorityClassName:
  # Secret is used to secure the upload state from client
  # and registry storage backend.
  # See: https://github.com/docker/distribution/blob/master/docs/configuration.md#http
  # If a secret key is not specified, Helm will generate one.
  # Must be a string of 16 chars.
  secret: ""
  # If true, the registry returns relative URLs in Location headers. The client is responsible for resolving the correct URL.
  relativeurls: false
  credentials:
    username: "harbor_registry_user"
    password: "harbor_registry_password"
    # Login and password in htpasswd string format. Excludes `registry.credentials.username`  and `registry.credentials.password`. May come in handy when integrating with tools like argocd or flux. This allows the same line to be generated each time the template is rendered, instead of the `htpasswd` function from helm, which generates different lines each time because of the salt.
    # htpasswdString: $apr1$XLefHzeG$Xl4.s00sMSCCcMyJljSZb0 # example string
  middleware:
    enabled: false
    type: cloudFront
    cloudFront:
      baseurl: example.cloudfront.net
      keypairid: KEYPAIRID
      duration: 3000s
      ipfilteredby: none
      # The secret key that should be present is CLOUDFRONT_KEY_DATA, which should be the encoded private key
      # that allows access to CloudFront
      privateKeySecret: "my-secret"
  # enable purge _upload directories
  upload_purging:
    enabled: true
    # remove files in _upload directories which exist for a period of time, default is one week.
    age: 168h
    # the interval of the purge operations
    interval: 24h
    dryrun: false
chartmuseum:
  enabled: true
  # set the service account to be used, default if left empty
  serviceAccountName: ""
  # mount the service account token
  automountServiceAccountToken: false
  # Harbor defaults ChartMuseum to returning relative urls, if you want using absolute url you should enable it by change the following value to 'true'
  absoluteUrl: false
  image:
    repository: goharbor/chartmuseum-photon
    tag: dev
  replicas: 1
  revisionHistoryLimit: 10
  # resources:
  #  requests:
  #    memory: 256Mi
  #    cpu: 100m
  nodeSelector: {}
  tolerations: []
  affinity: {}
  ## Additional deployment annotations
  podAnnotations: {}
  ## The priority class to run the pod as
  priorityClassName:
  ## limit the number of parallel indexers
  indexLimit: 0
trivy:
  # enabled the flag to enable Trivy scanner
  enabled: false
  image:
    # repository the repository for Trivy adapter image
    repository: goharbor/trivy-adapter-photon
    # tag the tag for Trivy adapter image
    tag: dev
  # set the service account to be used, default if left empty
  serviceAccountName: ""
  # mount the service account token
  automountServiceAccountToken: false
  # replicas the number of Pod replicas
  replicas: 1
  # debugMode the flag to enable Trivy debug mode with more verbose scanning log
  debugMode: false
  # vulnType a comma-separated list of vulnerability types. Possible values are `os` and `library`.
  vulnType: "os,library"
  # severity a comma-separated list of severities to be checked
  severity: "UNKNOWN,LOW,MEDIUM,HIGH,CRITICAL"
  # ignoreUnfixed the flag to display only fixed vulnerabilities
  ignoreUnfixed: false
  # insecure the flag to skip verifying registry certificate
  insecure: false
  # gitHubToken the GitHub access token to download Trivy DB
  #
  # Trivy DB contains vulnerability information from NVD, Red Hat, and many other upstream vulnerability databases.
  # It is downloaded by Trivy from the GitHub release page https://github.com/aquasecurity/trivy-db/releases and cached
  # in the local file system (`/home/scanner/.cache/trivy/db/trivy.db`). In addition, the database contains the update
  # timestamp so Trivy can detect whether it should download a newer version from the Internet or use the cached one.
  # Currently, the database is updated every 12 hours and published as a new release to GitHub.
  #
  # Anonymous downloads from GitHub are subject to the limit of 60 requests per hour. Normally such rate limit is enough
  # for production operations. If, for any reason, it's not enough, you could increase the rate limit to 5000
  # requests per hour by specifying the GitHub access token. For more details on GitHub rate limiting please consult
  # https://developer.github.com/v3/#rate-limiting
  #
  # You can create a GitHub token by following the instructions in
  # https://help.github.com/en/github/authenticating-to-github/creating-a-personal-access-token-for-the-command-line
  gitHubToken: ""
  # skipUpdate the flag to disable Trivy DB downloads from GitHub
  #
  # You might want to set the value of this flag to `true` in test or CI/CD environments to avoid GitHub rate limiting issues.
  # If the value is set to `true` you have to manually download the `trivy.db` file and mount it in the
  # `/home/scanner/.cache/trivy/db/trivy.db` path.
  skipUpdate: false
  # The offlineScan option prevents Trivy from sending API requests to identify dependencies.
  #
  # Scanning JAR files and pom.xml may require Internet access for better detection, but this option tries to avoid it.
  # For example, the offline mode will not try to resolve transitive dependencies in pom.xml when the dependency doesn't
  # exist in the local repositories. It means a number of detected vulnerabilities might be fewer in offline mode.
  # It would work if all the dependencies are in local.
  # This option doesn’t affect DB download. You need to specify skipUpdate as well as offlineScan in an air-gapped environment.
  offlineScan: false
  # The duration to wait for scan completion
  timeout: 5m0s
  resources:
    requests:
      cpu: 200m
      memory: 512Mi
    limits:
      cpu: 1
      memory: 1Gi
  nodeSelector: {}
  tolerations: []
  affinity: {}
  ## Additional deployment annotations
  podAnnotations: {}
  ## The priority class to run the pod as
  priorityClassName:
notary:
  enabled: false
  server:
    # set the service account to be used, default if left empty
    serviceAccountName: ""
    # mount the service account token
    automountServiceAccountToken: false
    image:
      repository: goharbor/notary-server-photon
      tag: dev
    replicas: 1
    # resources:
    #  requests:
    #    memory: 256Mi
    #    cpu: 100m
    nodeSelector: {}
    tolerations: []
    affinity: {}
    ## Additional deployment annotations
    podAnnotations: {}
    ## The priority class to run the pod as
    priorityClassName:
  signer:
    # set the service account to be used, default if left empty
    serviceAccountName: ""
    # mount the service account token
    automountServiceAccountToken: false
    image:
      repository: goharbor/notary-signer-photon
      tag: dev
    replicas: 1
    # resources:
    #  requests:
    #    memory: 256Mi
    #    cpu: 100m
    nodeSelector: {}
    tolerations: []
    affinity: {}
    ## Additional deployment annotations
    podAnnotations: {}
    ## The priority class to run the pod as
    priorityClassName:
  # Fill the name of a kubernetes secret if you want to use your own
  # TLS certificate authority, certificate and private key for notary
  # communications.
  # The secret must contain keys named ca.crt, tls.crt and tls.key that
  # contain the CA, certificate and private key.
  # They will be generated if not set.
  secretName: ""
database:
  # if external database is used, set "type" to "external"
  # and fill the connection informations in "external" section
  type: internal
  internal:
    # set the service account to be used, default if left empty
    serviceAccountName: ""
    # mount the service account token
    automountServiceAccountToken: false
    image:
      repository: goharbor/harbor-db
      tag: dev
    # The initial superuser password for internal database
    password: "changeit"
    # The size limit for Shared memory, pgSQL use it for shared_buffer
    # More details see:
    # https://github.com/goharbor/harbor/issues/15034
    shmSizeLimit: 512Mi
    # resources:
    #  requests:
    #    memory: 256Mi
    #    cpu: 100m
    nodeSelector: {}
    tolerations: []
    affinity: {}
    ## The priority class to run the pod as
    priorityClassName:
    initContainer:
      migrator: {}
      # resources:
      #  requests:
      #    memory: 128Mi
      #    cpu: 100m
      permissions: {}
      # resources:
      #  requests:
      #    memory: 128Mi
      #    cpu: 100m
  external:
    host: "192.168.0.1"
    port: "5432"
    username: "user"
    password: "password"
    coreDatabase: "registry"
    notaryServerDatabase: "notary_server"
    notarySignerDatabase: "notary_signer"
    # "disable" - No SSL
    # "require" - Always SSL (skip verification)
    # "verify-ca" - Always SSL (verify that the certificate presented by the
    # server was signed by a trusted CA)
    # "verify-full" - Always SSL (verify that the certification presented by the
    # server was signed by a trusted CA and the server host name matches the one
    # in the certificate)
    sslmode: "disable"
  # The maximum number of connections in the idle connection pool per pod (core+exporter).
  # If it <=0, no idle connections are retained.
  maxIdleConns: 100
  # The maximum number of open connections to the database per pod (core+exporter).
  # If it <= 0, then there is no limit on the number of open connections.
  # Note: the default number of connections is 1024 for postgre of harbor.
  maxOpenConns: 900
  ## Additional deployment annotations
  podAnnotations: {}
redis:
  # if external Redis is used, set "type" to "external"
  # and fill the connection informations in "external" section
  type: internal
  internal:
    # set the service account to be used, default if left empty
    serviceAccountName: ""
    # mount the service account token
    automountServiceAccountToken: false
    image:
      repository: goharbor/redis-photon
      tag: dev
    # resources:
    #  requests:
    #    memory: 256Mi
    #    cpu: 100m
    nodeSelector: {}
    tolerations: []
    affinity: {}
    ## The priority class to run the pod as
    priorityClassName:
  external:
    # support redis, redis+sentinel
    # addr for redis: <host_redis>:<port_redis>
    # addr for redis+sentinel: <host_sentinel1>:<port_sentinel1>,<host_sentinel2>:<port_sentinel2>,<host_sentinel3>:<port_sentinel3>
    addr: "192.168.0.2:6379"
    # The name of the set of Redis instances to monitor, it must be set to support redis+sentinel
    sentinelMasterSet: ""
    # The "coreDatabaseIndex" must be "0" as the library Harbor
    # used doesn't support configuring it
    coreDatabaseIndex: "0"
    jobserviceDatabaseIndex: "1"
    registryDatabaseIndex: "2"
    chartmuseumDatabaseIndex: "3"
    trivyAdapterIndex: "5"
    password: ""
  ## Additional deployment annotations
  podAnnotations: {}
exporter:
  replicas: 1
  revisionHistoryLimit: 10
# resources:
#  requests:
#    memory: 256Mi
#    cpu: 100m
  podAnnotations: {}
  serviceAccountName: ""
  # mount the service account token
  automountServiceAccountToken: false
  image:
    repository: goharbor/harbor-exporter
    tag: dev
  nodeSelector: {}
  tolerations: []
  affinity: {}
  cacheDuration: 23
  cacheCleanInterval: 14400
  ## The priority class to run the pod as
  priorityClassName:
metrics:
  enabled: false
  core:
    path: /metrics
    port: 8001
  registry:
    path: /metrics
    port: 8001
  jobservice:
    path: /metrics
    port: 8001
  exporter:
    path: /metrics
    port: 8001
  ## Create prometheus serviceMonitor to scrape harbor metrics.
  ## This requires the monitoring.coreos.com/v1 CRD. Please see
  ## https://github.com/prometheus-operator/prometheus-operator/blob/master/Documentation/user-guides/getting-started.md
  ##
  serviceMonitor:
    enabled: false
    additionalLabels: {}
    # Scrape interval. If not set, the Prometheus default scrape interval is used.
    interval: ""
    # Metric relabel configs to apply to samples before ingestion.
    metricRelabelings: []
      # - action: keep
      #   regex: 'kube_(daemonset|deployment|pod|namespace|node|statefulset).+'
      #   sourceLabels: [__name__]
    # Relabel configs to apply to samples before ingestion.
    relabelings: []
      # - sourceLabels: [__meta_kubernetes_pod_node_name]
      #   separator: ;
      #   regex: ^(.*)$
      #   targetLabel: nodename
      #   replacement: $1
      #   action: replace
trace:
  enabled: false
  # trace provider: jaeger or otel
  # jaeger should be 1.26+
  provider: jaeger
  # set sample_rate to 1 if you wanna sampling 100% of trace data; set 0.5 if you wanna sampling 50% of trace data, and so forth
  sample_rate: 1
  # namespace used to differentiate different harbor services
  # namespace:
  # attributes is a key value dict contains user defined attributes used to initialize trace provider
  # attributes:
  #   application: harbor
  jaeger:
    # jaeger supports two modes:
    #   collector mode(uncomment endpoint and uncomment username, password if needed)
    #   agent mode(uncomment agent_host and agent_port)
    endpoint: http://hostname:14268/api/traces
    # username:
    # password:
    # agent_host: hostname
    # export trace data by jaeger.thrift in compact mode
    # agent_port: 6831
  otel:
    endpoint: hostname:4318
    url_path: /v1/traces
    compression: false
    insecure: true
    timeout: 10s

通过下列命令Helm进行安装

helm repo add harbor https://helm.goharbor.io
helm install my-harbor harbor/harbor -f values.yaml --create-namespace -n harbor

其他：
https://blog.csdn.net/longlong6682/article/details/106923179

https://chaiyingchao.blog.csdn.net/article/details/112985559?spm=1001.2101.3001.6650.1&utm_medium=distribute.pc_relevant.none-task-blog-2%7Edefault%7ECTRLIST%7Edefault-1-112985559-blog-106923179.pc_relevant_default&depth_1-utm_source=distribute.pc_relevant.none-task-blog-2%7Edefault%7ECTRLIST%7Edefault-1-112985559-blog-106923179.pc_relevant_default&utm_relevant_index=2
